Ronix
[RH-4108] Paranco a Leva-0.75T
[RH-4108] Paranco a Leva-0.75T
Prezzo su richiesta
Imposte incluse.
Su Richiesta
Tempi da concordare
Reso 14 giorni
Per acquisti privati B2C
Garanzia UE
24 mesi · Rete Ronix
Quantità
Prodotto di Catalogo Esteso
Attualmente non disponibile per la vendita diretta. Contattaci per quotazioni e disponibilità.
Attualmente non disponibile per la vendita diretta. Contattaci per quotazioni e disponibilità.
Features
Description

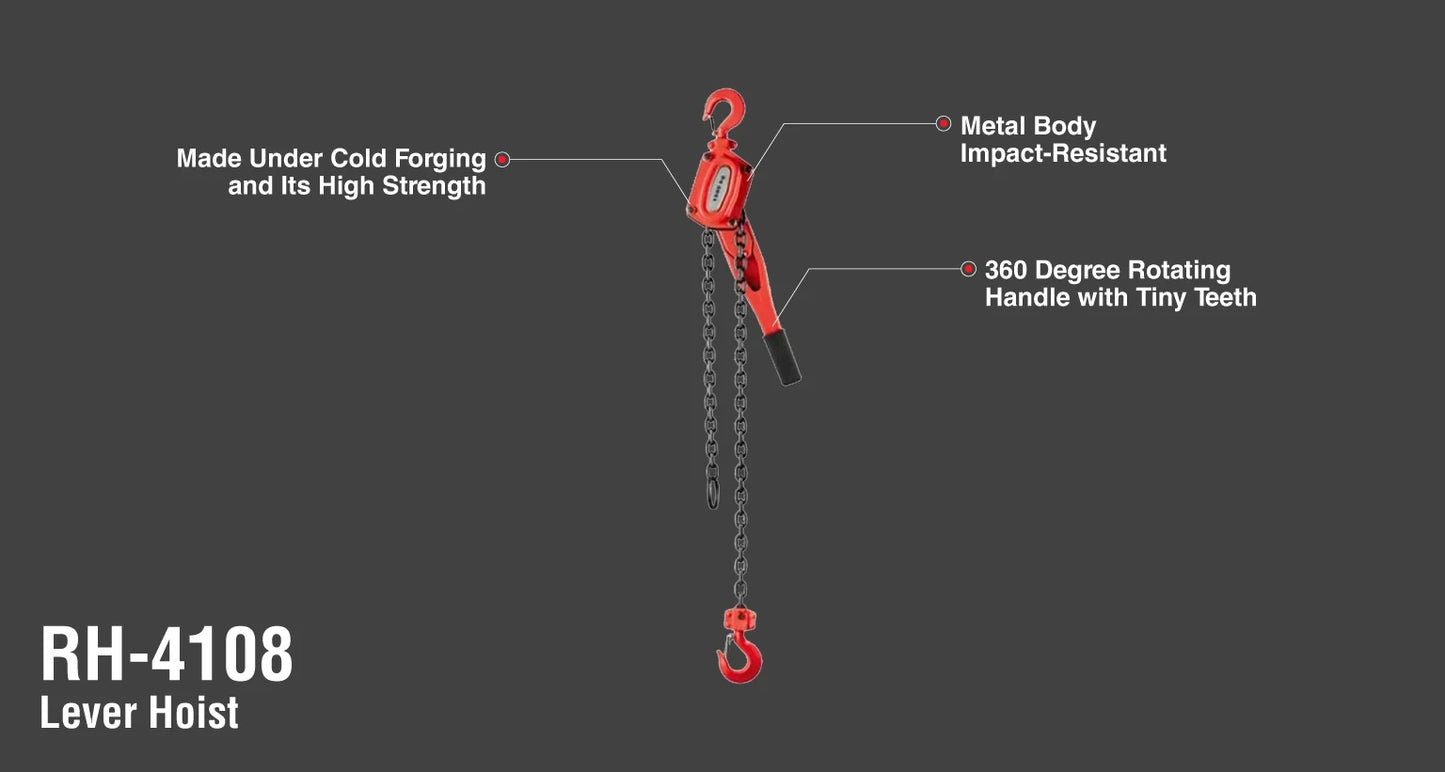

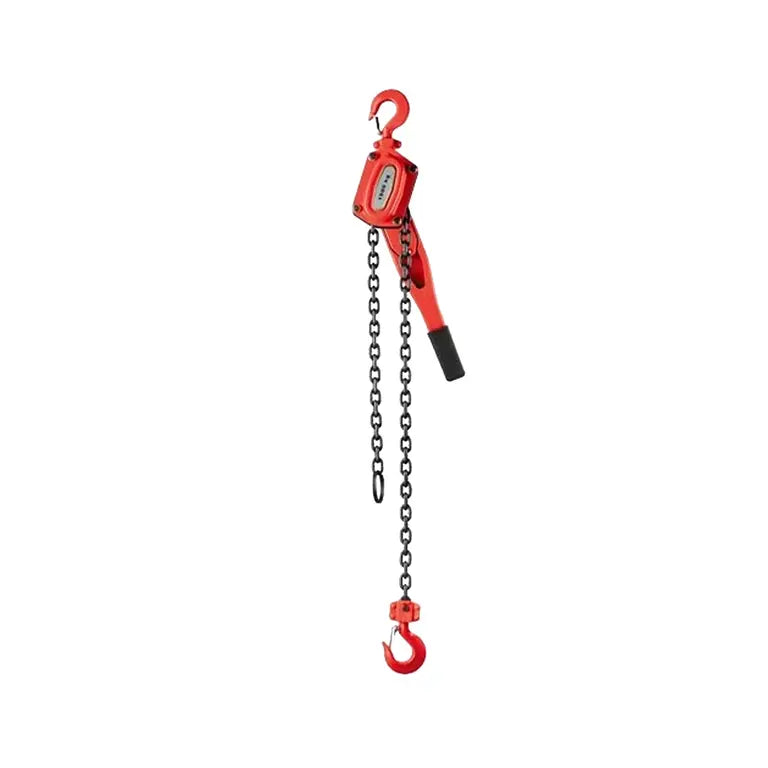

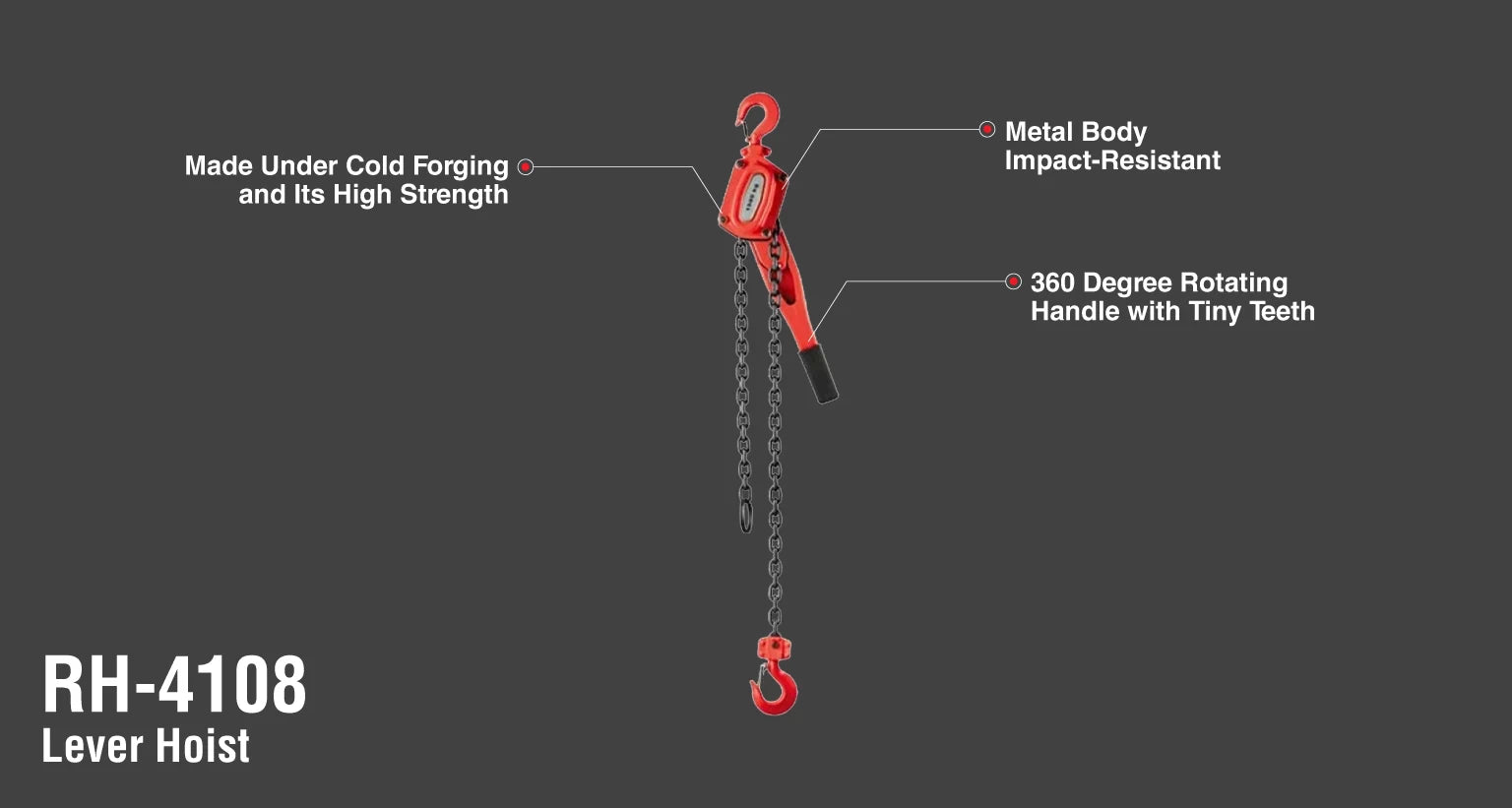

Lever hoists, also known as ratchet lever hoists, are one of the best mechanical devices to use for lifting and pulling heavy loads. They consist of a lever handle, a load chain, and a ratchet and pawl system. Lever hoists work by applying force to the lever handle, which activates the ratchet and pawl mechanism. As the lever is operated, the load chain is pulled through the hoist, resulting in the lifting or pulling of the load. The ratchet and pawl system ensures that the load remains securely held in place when the lever is released. Various industries and professions can benefit from using lever hoists. Construction sites, manufacturing plants, warehouses, and maintenance crews often rely on lever hoists to handle heavy equipment, machinery, or materials. Ronix RH-4108 is a lever hoist designed to excel in any of the aforementioned scenarios while also ensuring the safety of the user. Equipped with an all-metal body, the RH-4108 model can deal with loads as heavy as 0.75T.
Specifiche Tecniche
| Model | RH-4108 |
| Capacity (tonnes) | 0.75 T |
| No. of falls | 1 |
| Load chain (mm) | 6x18 |
| Pull to lift rated load | 14 N |
| Proof load (kN) | 11.3 |
| Standard lift (m) | 1.5 |
