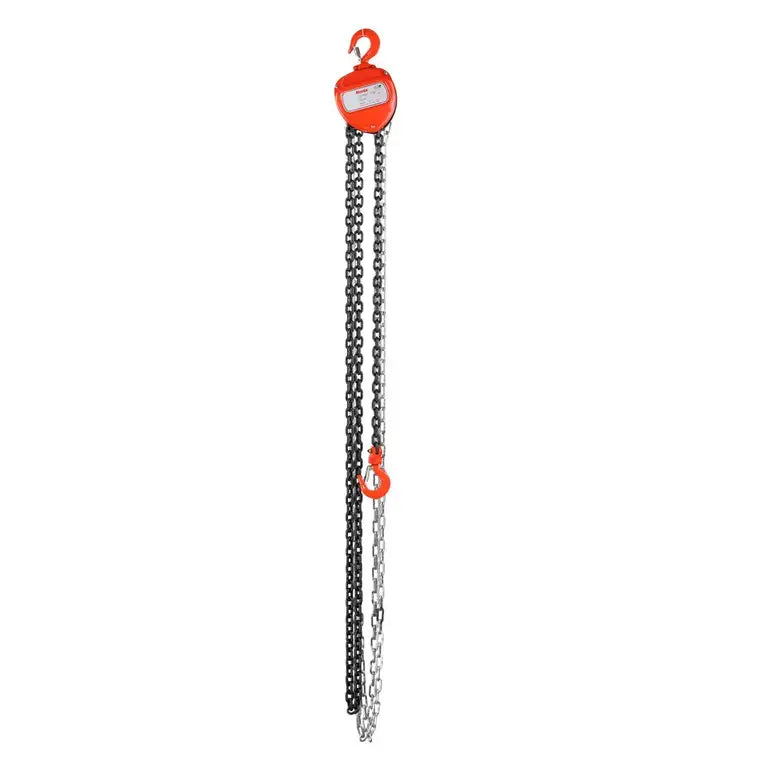

[RH-4107] Paranco a Catena Capacità 10T
[RH-4107] Paranco a Catena Capacità 10T
Prezzo su richiesta
Imposte incluse.
Su Richiesta
Tempi da concordare
Reso 14 giorni
Per acquisti privati B2C
Garanzia UE
24 mesi · Rete Ronix
Quantità
Prodotto di Catalogo Esteso
Attualmente non disponibile per la vendita diretta. Contattaci per quotazioni e disponibilità.
Attualmente non disponibile per la vendita diretta. Contattaci per quotazioni e disponibilità.
Features
Features :

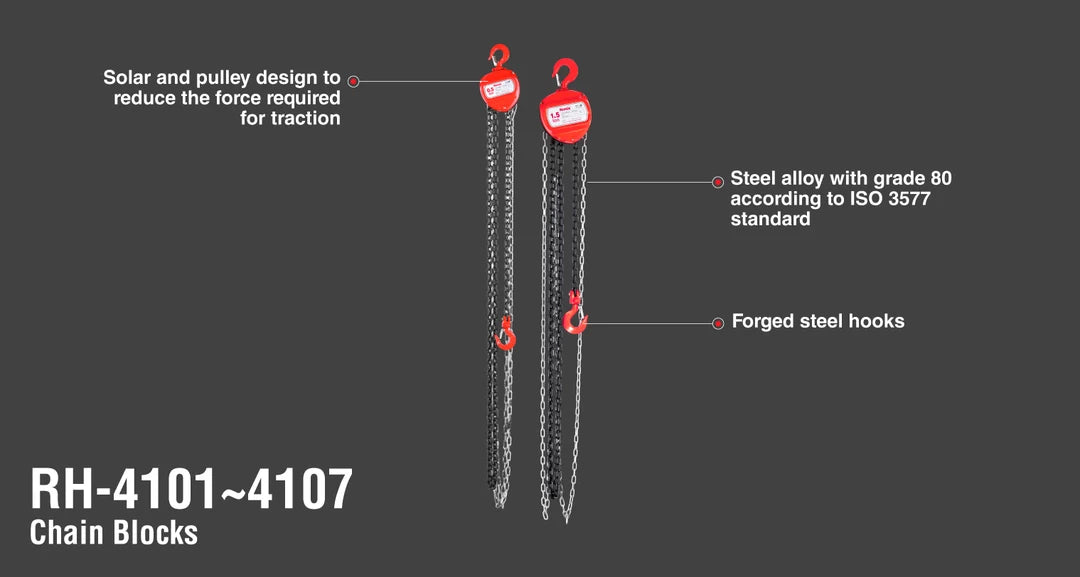

-Solar and pulley design to reduce the force required for traction
-Biaxial system and two guide rollers
-Load chains are made of steel alloy with grade 80 according to ISO 3577 standard
-Top and bottom hooks made of forged steel that slowly bends due to overload to warn of overload
-Galvanized chains available in sizes of 3 and 6 meters
-Overload protection system
-Solar and pulley design to reduce the force required for traction
-Biaxial system and two guide rollers
-Load chains are made of steel alloy with grade 80 according to ISO 3577 standard
-Top and bottom hooks made of forged steel that slowly bends due to overload to warn of overload
-Galvanized chains available in sizes of 3 and 6 meters
-Overload protection system
Description
Chain blocks are one of the most common mechanical devices used for lifting and moving heavy loads and consist of a chain, a set of pulleys, and a ratchet mechanism. Using them, the user will pull the chain through the pulley system, which increases the mechanical advantage and allows for the lifting of heavy objects with minimal effort. Chain blocks’ ratchet mechanism locks the load in place to prevent it from descending unintentionally. Ronix RH-4107 is the 10T variant of our offerings in the chain block category that works just as described. It features a biaxial system and two guide rollers and a solar pulley design that reduces the force required for traction, simplifying the process of working with this device.
Specifiche Tecniche
| Model | RH-4107 |
| Capacity (tonnes) | 10 T |
| No. of falls | 2 |
| Load chain (mm) | 10x30 |
| Pull to lift rated load | 392 N |
| Proof load (tonnes) | 12.5 T |
| Hand chain (mm) | 5x25x17 |
| Standard lift (m) | 3 |
| Net Weight | 88 kg |
| Gross weight | 99 kg |
| Extra lift per weight | 9.7 kg |
