Ronix

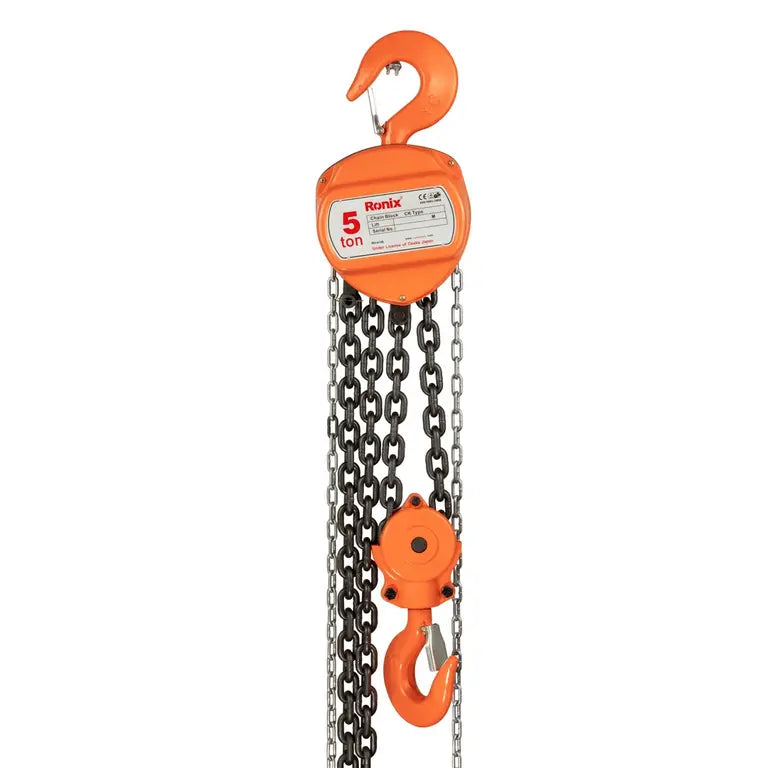

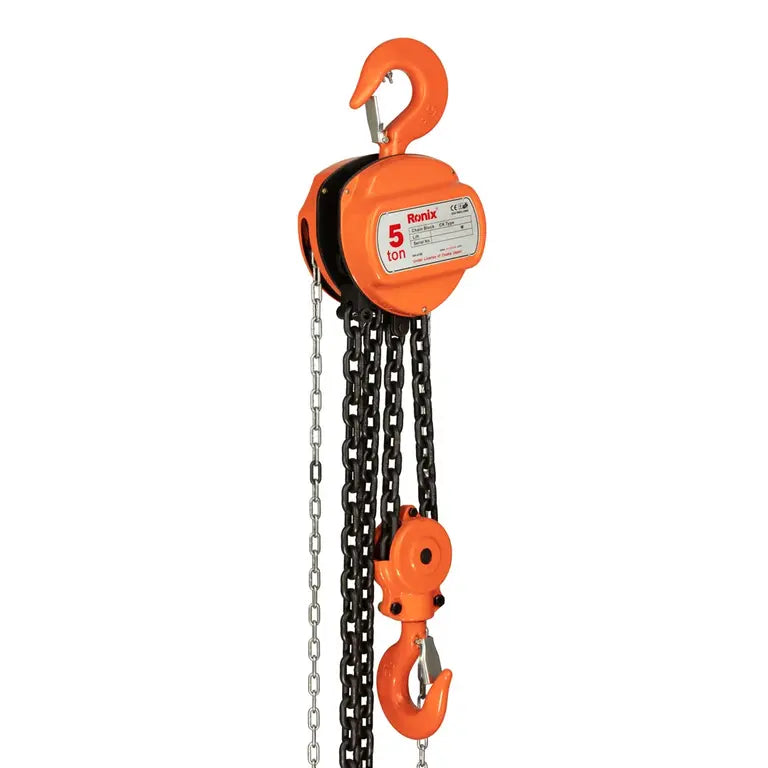

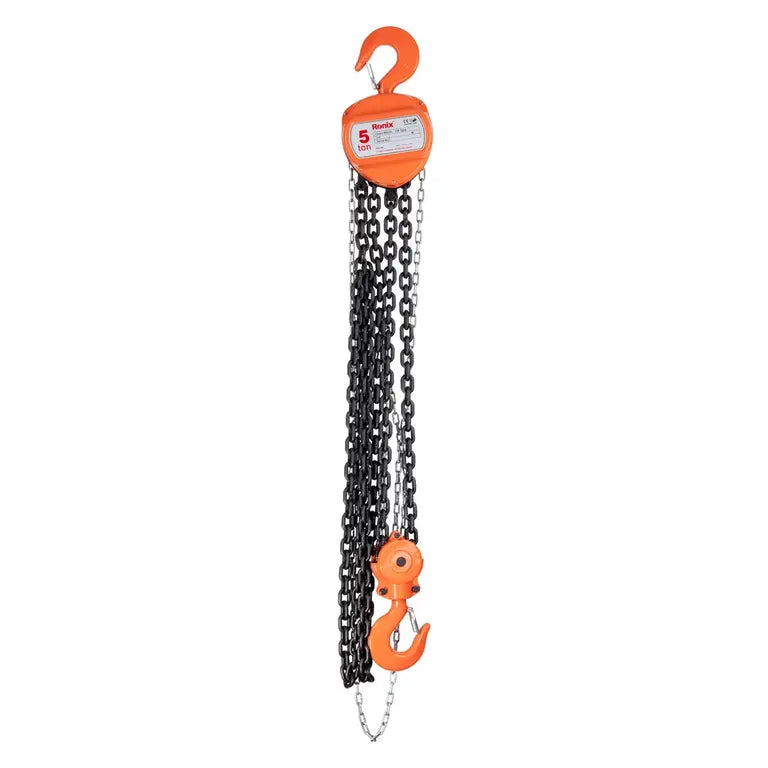

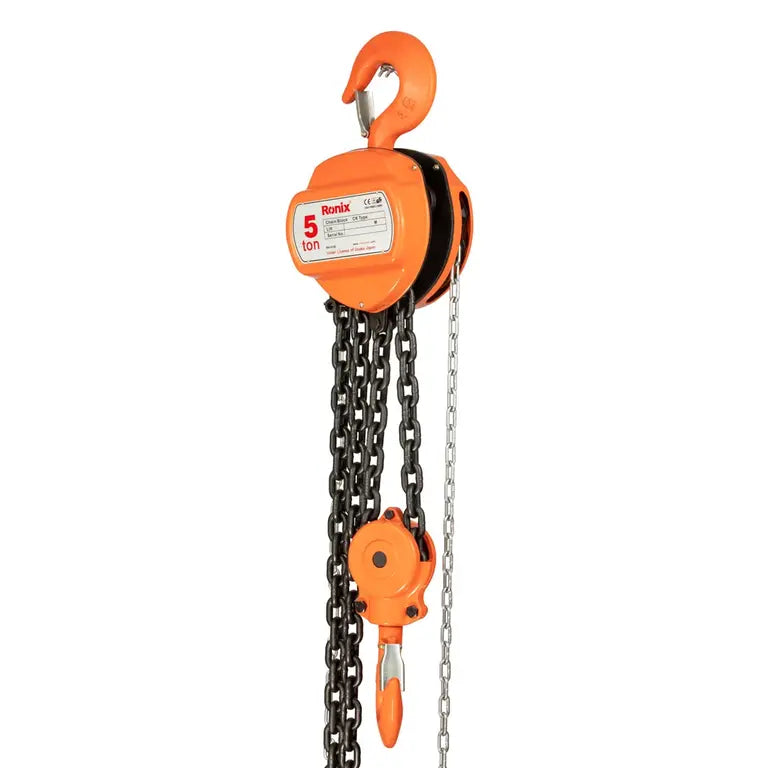

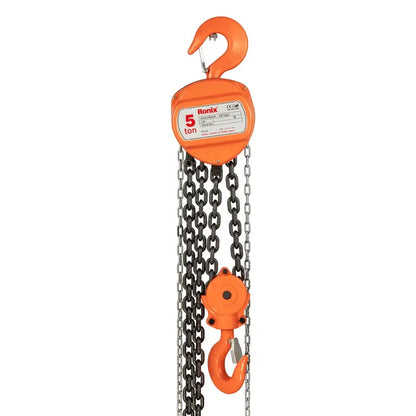

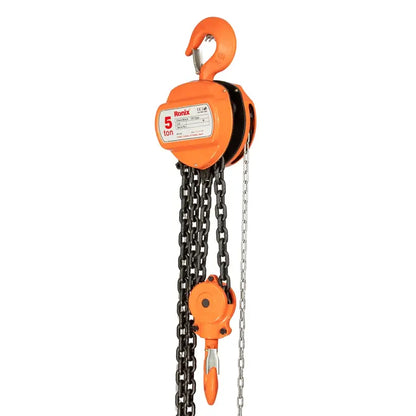

[RH-4106] Paranco a Catena 5T

[RH-4106] Paranco a Catena 5T

Prezzo su richiesta
Imposte incluse.
Su Richiesta
Tempi da concordare
Reso 14 giorni
Per acquisti privati B2C
Garanzia UE
24 mesi · Rete Ronix
Quantità
Prodotto di Catalogo Esteso
Attualmente non disponibile per la vendita diretta. Contattaci per quotazioni e disponibilità.

Features

Features :

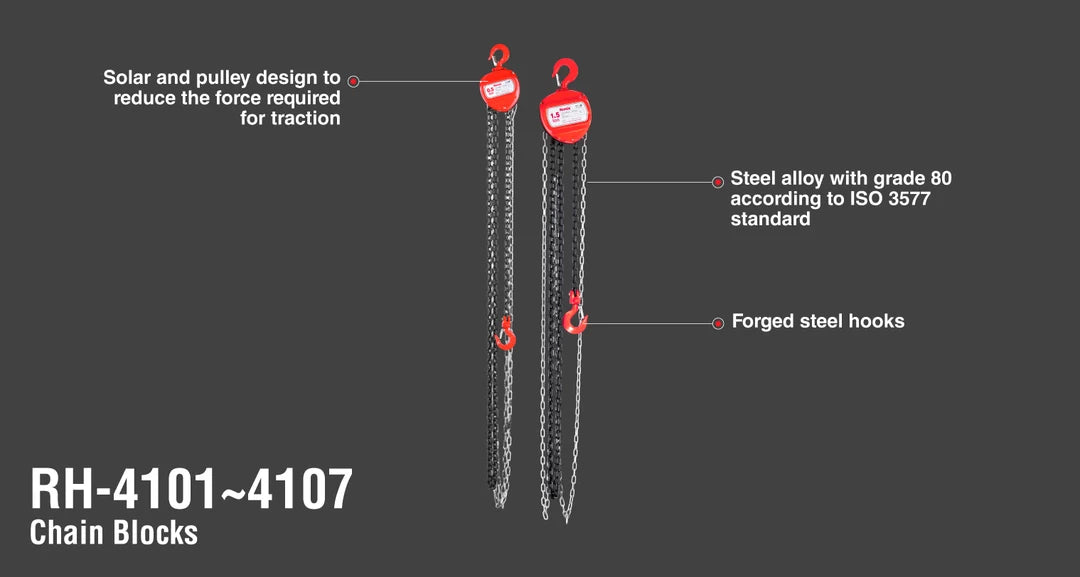

-Solar and pulley design to reduce the force required for traction
-Biaxial system and two guide rollers

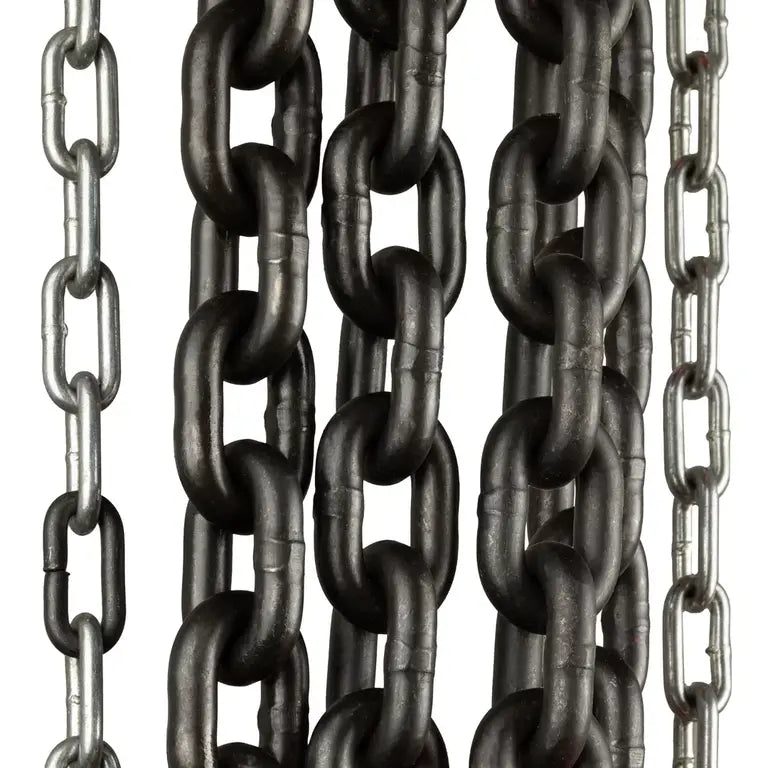

-Load chains are made of steel alloy with grade 80 according to ISO 3577 standard

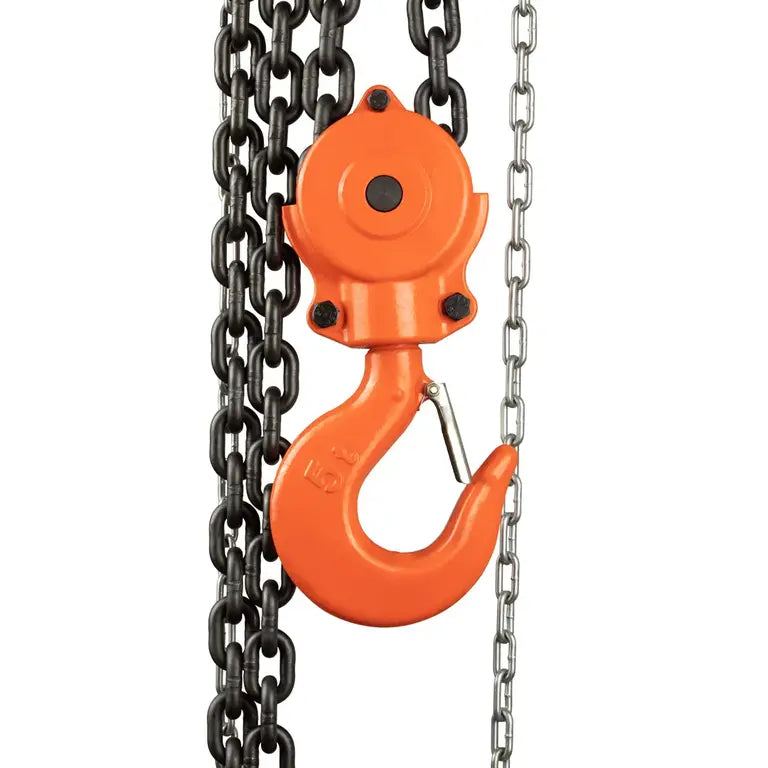

-Top and bottom hooks made of forged steel that slowly bends due to overload to warn of overload
-Galvanized chains available in sizes of 3 and 6 meters
-Overload protection system



Description

Chain blocks, also known as chain hoists, are mechanical devices used for lifting and lowering heavy loads. They usually have a chain, a lifting mechanism, and a ratchet system. Chain blocks work by pulling the chain through the hoist to raise the load, and the ratchet system locks the load in place to prevent it from descending unintentionally. They provide a reliable and efficient means of lifting heavy objects in a controlled manner. Ronix RH-4106 is also a chain block that can lift loads as heavy as 5T while having a pull-to-lift rated load of 420N. If you are looking for a sturdy chain block, designed for heavier loads, Ronix RH-4106 is among the best options available on the market.



Specifiche Tecniche

Model RH-4106
Capacity (tonnes) 5 T
No. of falls 2
Pull to lift rated load 420 N
Proof load (tonnes) 7.5 T
Load chain (mm) 10x30
Hand chain (mm) 5x25x17
Standard lift (m) 3
Net Weight 36 kg
Gross weight 37 kg
Extra lift per weight 5.3 kg
