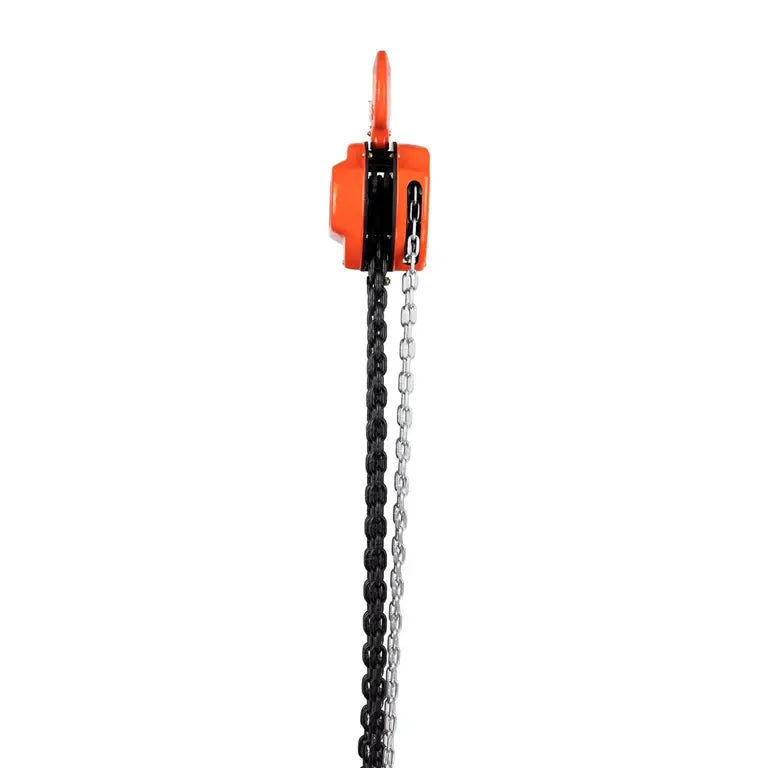

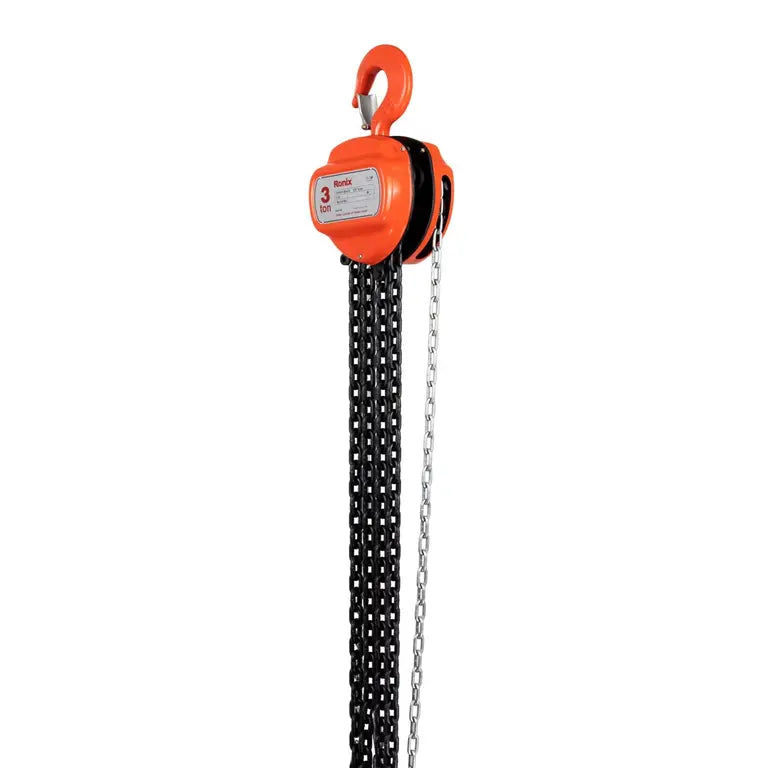

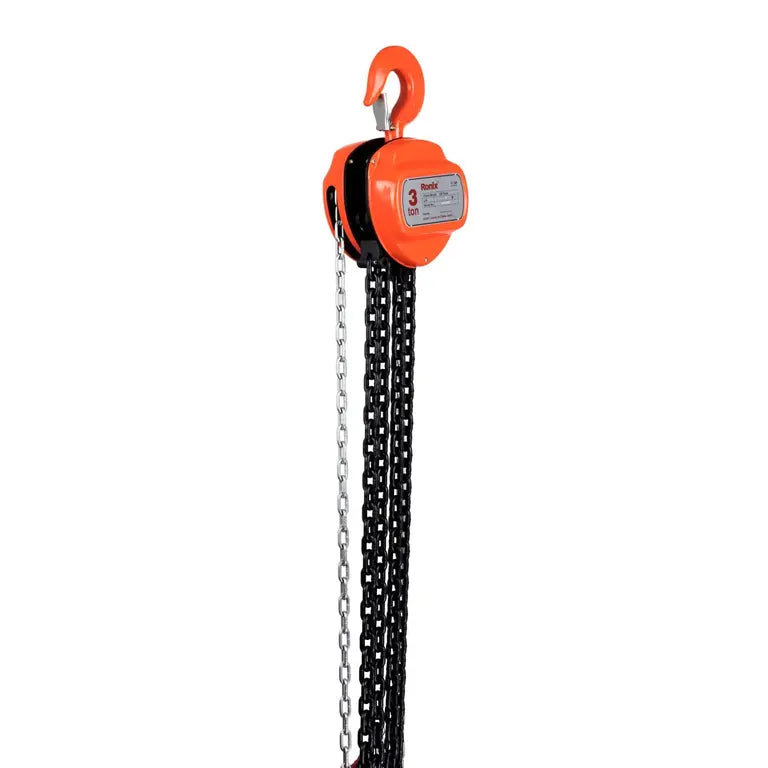

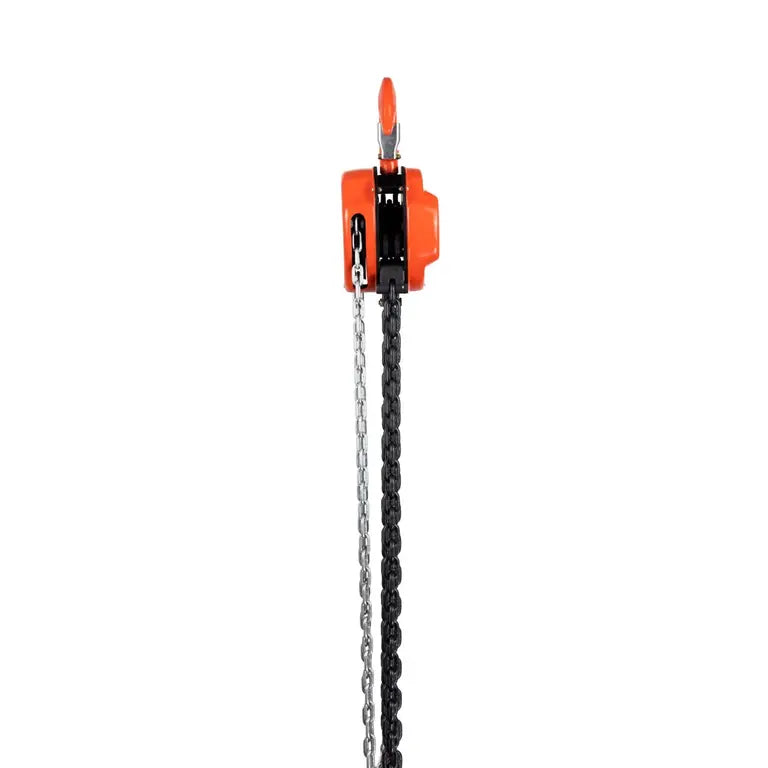

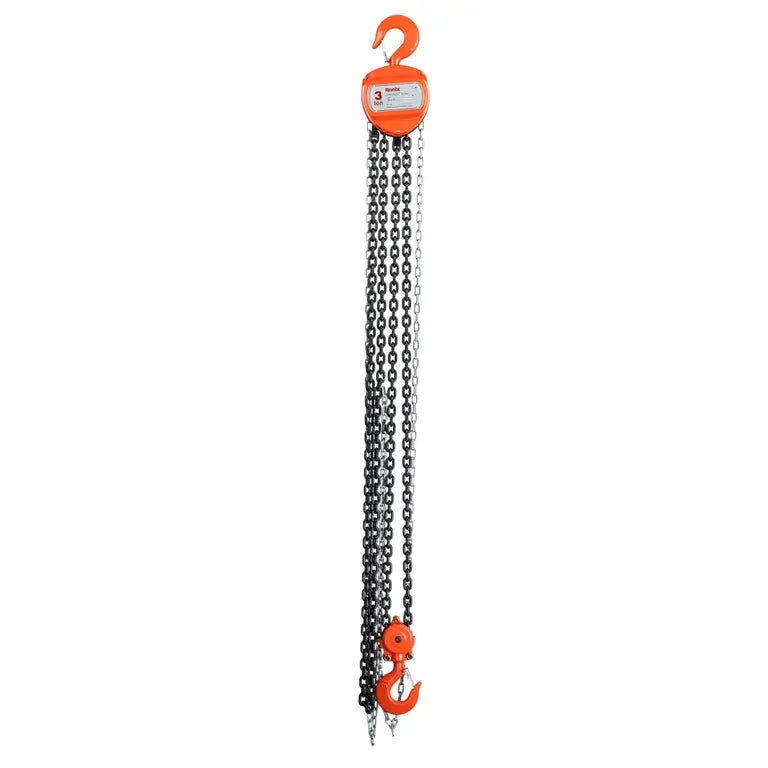

[RH-4105] Paranco a Catena 3T
[RH-4105] Paranco a Catena 3T
Prezzo su richiesta
Imposte incluse.
Su Richiesta
Tempi da concordare
Reso 14 giorni
Per acquisti privati B2C
Garanzia UE
24 mesi · Rete Ronix
Quantità
Prodotto di Catalogo Esteso
Attualmente non disponibile per la vendita diretta. Contattaci per quotazioni e disponibilità.
Attualmente non disponibile per la vendita diretta. Contattaci per quotazioni e disponibilità.
Features
Features :

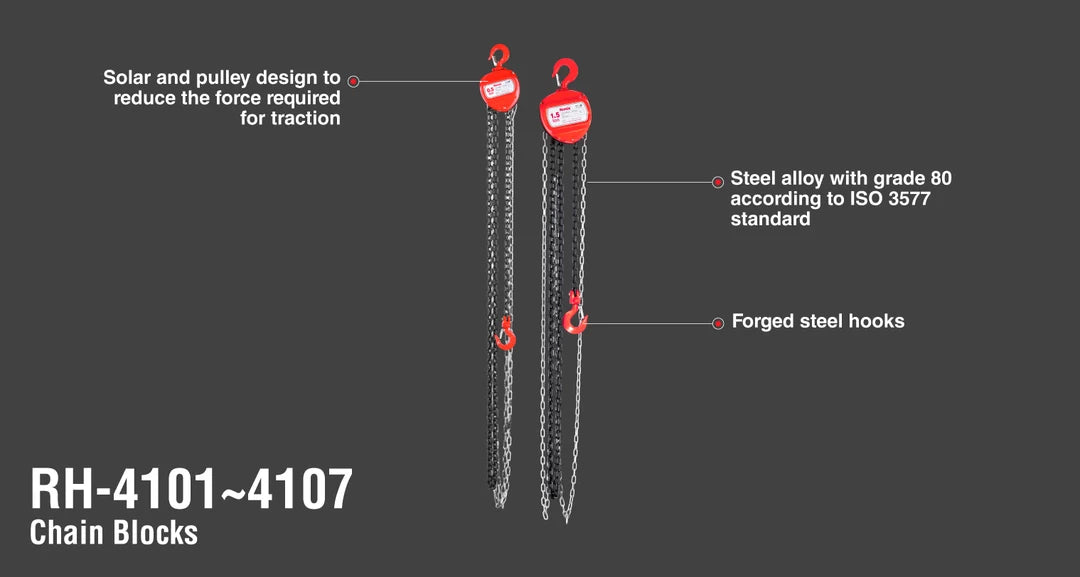

-Solar and pulley design to reduce the force required for traction
-Biaxial system and two guide rollers

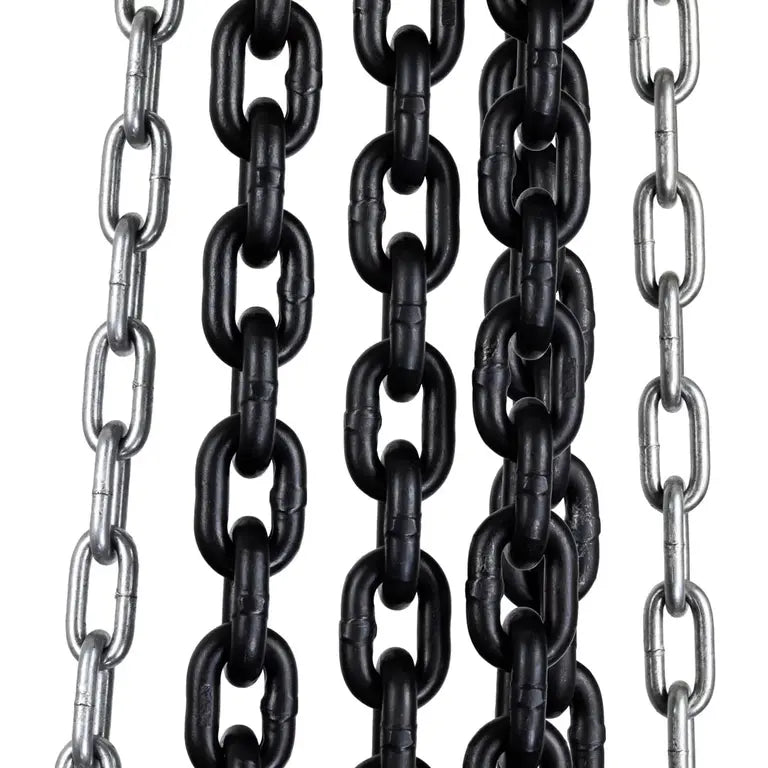

-Load chains are made of steel alloy with grade 80 according to ISO 3577 standard

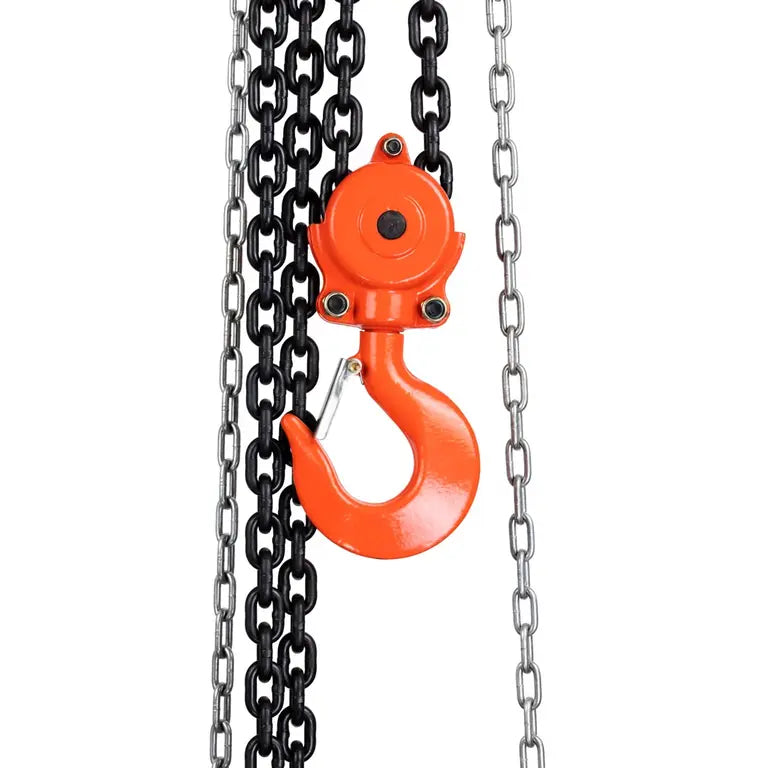

-Top and bottom hooks made of forged steel that slowly bends due to overload to warn of overload
-Galvanized chains available in sizes of 3 and 6 meters
-Overload protection system
-Solar and pulley design to reduce the force required for traction
-Biaxial system and two guide rollers
-Load chains are made of steel alloy with grade 80 according to ISO 3577 standard
-Top and bottom hooks made of forged steel that slowly bends due to overload to warn of overload
-Galvanized chains available in sizes of 3 and 6 meters
-Overload protection system
Description
Chain blocks are mechanical devices used for lifting and lowering heavy loads in various industries. They consist of a chain, a pulley system, and a hand-operated mechanism. Chain blocks work by pulling the chain through the pulley system, which increases the lifting force. By pulling the chain down, the user can lift the load, while releasing the tension on the chain, allowing a controlled descent. Ronix RH-4105 is a chain block that works just as described and can help you deal with any load with a maximum weight of 3T. If you are in search of a new chain block, our RH-4105 is one of the best options available on the tools market.
Specifiche Tecniche
| Model | RH-4105 |
| Capacity (tonnes) | 3 T |
| No. of falls | 2 |
| Load chain (mm) | 8x24 |
| Pull to lift rated load | 390 N |
| Proof load (tonnes) | 4.5 T |
| Hand chain (mm) | 5x25x17 |
| Standard lift (m) | 3 |
| Net Weight | 22 kg |
| Gross weight | 23 kg |
| Extra lift per weight | 3.7 kg |
